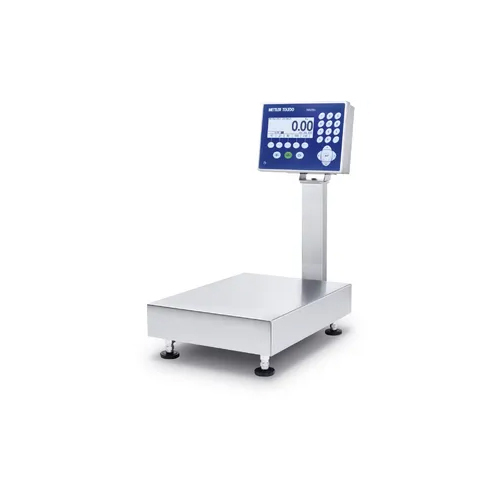

Bench Scale

Maximum Capacity

100 lb (30 kg/60 kg)

Readability

0.005 lb (2 g)

Repeatability(sd)

0.0031 lb (1.4 g)

Platform Size (LxHxW)

23.62 in x 5.1 in x 31.5 in (600 mm x 130 mm x 800 mm)

Material

Stainless Steel V2A (AISI 304)

Protection Rating

IP69k; IP68

Display

Color TFT screen

Readability (Certified)

0.02 lb (10 g; 20 g)

Interfaces

RS232

Housing

Stainless Steel V2A (AISI 304)

Repeatability

2 g

Repeatability, typical

1.4 g

Repeatability (typical)

0.0031 lb

Hazardous Approval

No

Application Software

Pick&Pack; Formulation; Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing

Data Interface

Serial; USB; Ethernet; WLAN

Environment

Wet & Harsh Wet (>/=IP66)

Legal for Trade

NTEP; OIML

Hazardous Area

Non-hazardous area

Applications

Simple Weighing; Dynamic weighing; Pick&Pack; Formulation; Counting; Over Under Checkweighing

Voltage

Battery Version; AC Version; DC Version

Scale Interface

Analog

Interfaces (Optional)

USB; Ethernet; RS422; RS485; WLAN; Discrete I/O

Hygienic Design

Yes

Platform Type

Bench Scale

Material Number(s)

22201279
