Multidrum Filling System

Get a Price/Quote

Product Details:

Display Type Digital Display
Features Precise filling operations easy-to-use interface
Application Drum Filling
Usage Industrial
Automatic Grade Automatic
Size Standard drum size compatibility
IP Rating IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Multidrum Filling System Product Specifications

IP Rating IP65
Power Source Electric
Monitor Display Integrated control panel monitor
Connectivity Type Wired
Accuracy High Accuracy
Function Liquid filling into drums
Size Standard drum size compatibility
Automatic Grade Automatic
Material Metal
Weighing Scale Type Platform Weighing Scale
Warranty 1 Year
Features Precise filling operations easy-to-use interface
Display Type Digital Display
Product Type Multidrum Filling System
Interface Touch Panel Control
Application Drum Filling
Capacity Range Up to 200 liters
Load Bulk liquid handling
Power Supply 220-240V AC 50/60 Hz
Color Blue
Usage Industrial

Product Description

Specifications - i-DFS for Liquid Filling Applications

Capacity	From 50kg to 2000kg
Power	230V AC, 50 Hz
Connections	Flexible product hose 1 1/2'' NPT connection standard
Hazardous area (Ex)	Available for Zone 1 IIA/IIB, Zone 2 IIA/IIB, Zone 2 IIC
Data Interfaces	Standard- USB; Optional- Data logging software, Printer, PLC
Platform size	Single Drum - 600 x 800mm; Multi Drum - 1000 x 1000mm to 2000 x 2000mm; Standard- MS/SS; Optional - SS/SS
Lance Assembly:	Standard - SS304; Optional - SS316, SS316L, Teflon-lined
Ball Valve:	Standard - 3 position elctropneumatic SS304; Optional - SS316, SS316L, Teflon-lined, Triport
Air Requirement:	6-8 bar
Gas Purging:	Available with nitrogen or steam
Jacketing & Insulation:	Lance ball valve- Insulation/electric heater/hot water jacket/steam jacket

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Industrial Scales and Load Cells' category

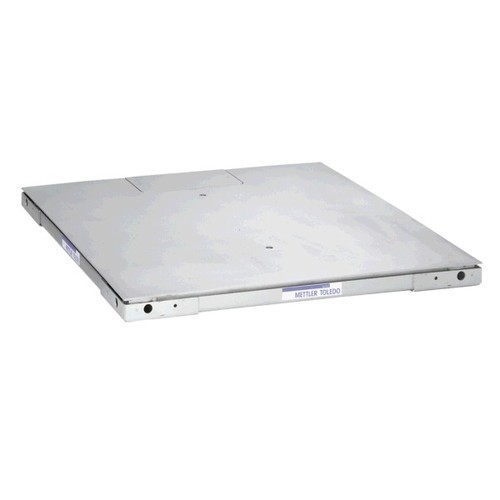

N Line Floor Scales Minimum Order Quantity : 1 Product Type : Weighing Scale Power Supply : Electric Monitor Display : LED Material : Steel Accuracy : 100 %

Send Inquiry

Heavy Duty Scale Minimum Order Quantity : 1 Product Type : Heavy Duty Scale Power Supply : Electric Monitor Display : LED Material : Steel Accuracy : 100 %

Send Inquiry

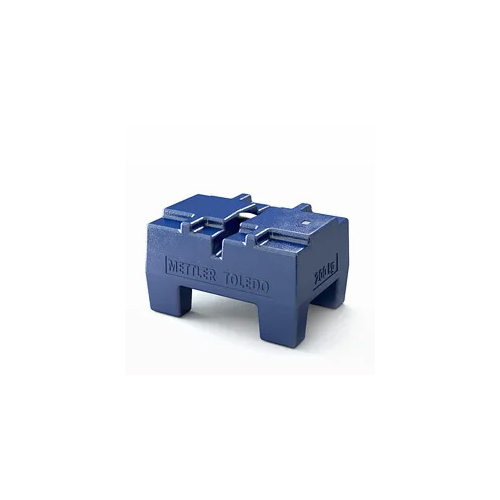

Heavy-duty Weights
