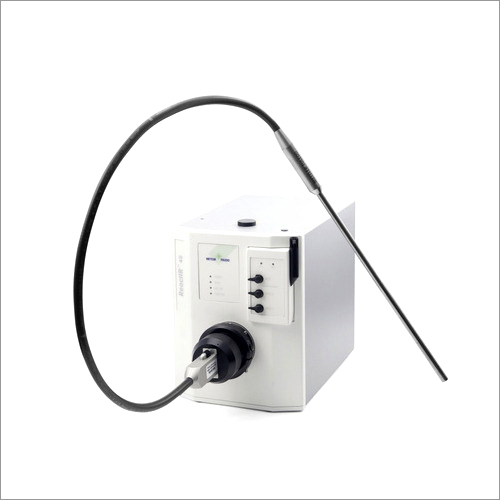

System ReactIR 702L TEMCT

For Use In

Laboratory

Software

iC IR

Detector

TE MCT

Optical Range (Base Unit)

4000 - 800 cm-1

Purge Requirement

No

Resolution

4 cm-1 maximum

Communication

USB

Probe Optical Window

2500 - 650 cm-1 maximum (Fiber Probe); 4000 - 650 cm-1 (Sentinel); 4000 - 650cm-1 (Micro Flow Cell)

Probe Pressure (Maximum)

69bar (6.3 & 9.5mm Fiber Probe); 35bar (Micro Flow Cell); 206bar (Sentinel)

Probe Temperature (Maximum)

180 deg C (Fiber Probe); 60 deg C (Micro Flow Cell); 300 deg C (Sentinel)

Weight

9.2 lb (4.2 kg)

Wetted Materials

Alloy C22; Diamond or Silicon; Gold or PTFE

Probe pH Range

1 - 14 (Diamond); 1 - 9 (Silicon)

Dimensions (DxHxW)

9.2 in x 4 in x 8.1 in (234 mm x 100 mm x 206 mm)

Laser Safety Certification

IEC 60825 (CE), 21 CFR 1040 (US)

Safety Certification

NRTL/C: UL 61010-1, CSA 22.2 No. 61010-1, EN 61326; CE: EN/IEC 61010-1:2012, IEC 61326

Material Number(s)

30456495
